model AL380
380 mm ( 15" ) Saw Blade
| AL380 Cutting Range | 90° | 45° |
|---|---|---|
| round tube ⦿ | 5.5'' | 4.7'' |
| solid round ⬤ | 3'' | 3'' |
| square tube ▣ | 4.9'' | 4.2'' |
| section tube ▭ | 7'' x 3.5'' | 5'' x 3.5'' |

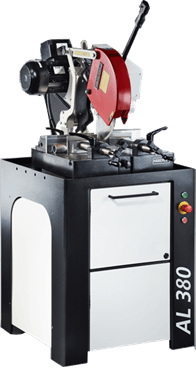

HABERLE Model AL 380:
Carbide tipped (T.C.T.) (15") 380x40mm - High speed aluminum saw, for workshops and production, cuts aluminum alloys and plastics
Model A: Two Mechanical Push & Clamp Vises With Oil Pump
Model B: Double Air Vise System w/ Stand and UNIST Oil Mist System.
HIGH-SPEED CIRCULAR SAW FOR ALUMINUM AND PLASTIC
For cutting tubes and profiles of soft aluminum alloys and plastics (ferrous material)
*Not suitable for cutting steel, stainless steel and hard materials (ferrous material)
Standard
Both model A & B come with stand and trigger switch in the handle
3-phase Electric System:
50 Hz Currency:
Main switch, with thermal overload protection, in Europe with under voltage trip and 24 V trigger switch as shown.
3 phase 1 - speed motor 40OV, 3.0 kW, motor brake.
60 Hz Currency (USA):
Main switch, thermal overload protection, for with under voltage, trip. Optional: 24 V trigger switch in the handle.
3 phase 1 - speed motor 220/440 V or 575 V, 4.8 HP
High Speed Saw Head:
Triple belt drive to the saw blade. Strong main spindle. Hardened and ground pivot shaft, adjustable, with bronze bushes. Pivot block with chip chute channel.
Machine Table:
Large table (620 mm), miters through 45º to both sides. Spring-loaded bolt for 0º and 45º.
Saw blade Size:
Max 380 mm x 40 mm (15") TCT (tungsten carbide tipped)
Drive holes: 2x Ø12 mm on circle Ø 64 mm.
Saw blade Speeds:
3000 RPM for TCT (tungsten carbide tipped) saw blades only
Saw blade Oil Lubricating Systems:
Model A comes standard with mechanical oil pump built into the saw head. Optional with uni-MAX™ spray system from UNIST INC, USA, and
Model B comes with the UNIST spray system (spray nozzle built into the saw blade guard, adjustable to the saw blade size.)
Safety Saw Blade Guard:
Entirely closing 2-piece aluminum guard. Link-operated lift-up system, for best protection and fast saw blade replacement.
Model B:
Air vise system, automatically operated by an air valve when the saw head is lifted from rest position. Cylinder Ø 70 mm, safety stroke 8 mm (1/4'). Standard with filter regulator-lubricator. Optional with separate pressure regulators for each cylinder, installed in the machine stand. Required air supply: 6 bar (90 PSI).
